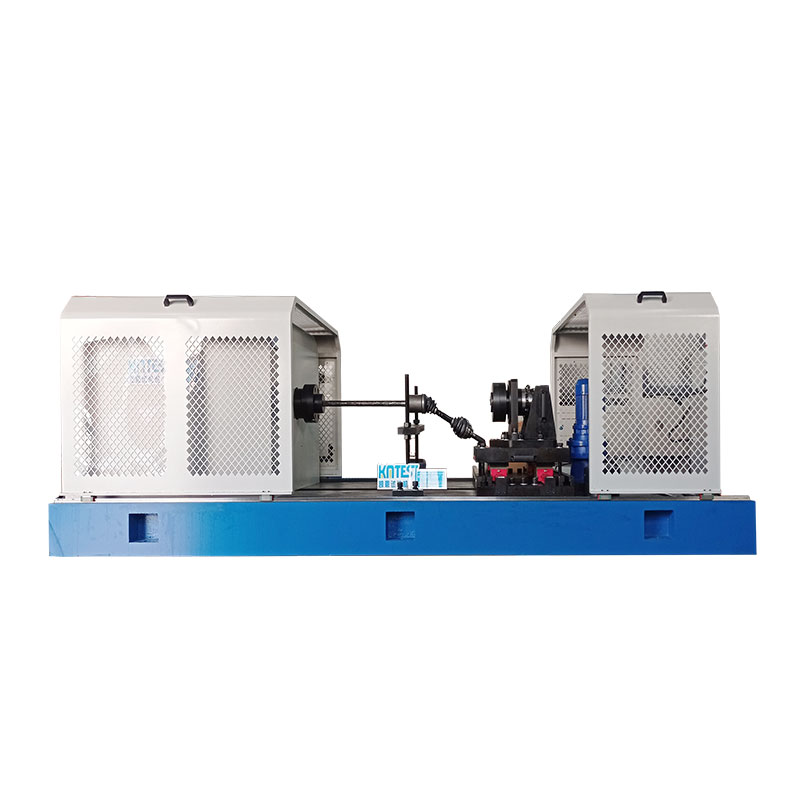

transmission shaft torsional fatigue testing machine

　　The transmission shaft torsional fatigue testing machine is composed of loading system, transmission system, digital data acquisition and processing system and computer measurement and control display system, etc. The transmission shaft torsional fatigue testing machine is suitable for testing the performance of static torsional mechanics of transmission shaft and various components such as transmission shaft, half shaft, crankshaft, automobile shaft, joint and so on. The machine adopts horizontal structure, computer control and screen display, Kane digital data acquisition control system and full digital AC servo system. Using planetary reducer transmission, it has the characteristics of uniform loading, stability, no impact phenomenon and accurate data acquisition and control.

No.	Parameter	Details
1	Maximum Torque	100Nm, 200Nm, 500Nm, 1000Nm, 5000Nm, 10000Nm, 20000Nm,30000Nm,50000Nm,80000N.m,100000N.m (Standard models as above, customizable)
2	Testing Machine Class	Class 0.5 / Class 1
3	Torque Resolution	0.001 ~ 0.01 N·m
4	Torsion Speed Control Range	0.1 - 720°/min (Customizable)
5	Rotation Angle Measurement Range	0 - 99999°
6	Repeatability Relative Error of Indication	< 0.5%
7	Test Frequency	0.1 Hz - 60 Hz
8	Loading Mode	Fully automatic
9	Torque Measurement Range	1% FS - 100% FS
10	Test Torque Direction	Positive and negative directions
11	Torque Resolution	1/300,000
12	Test Stroke	500 - 3000 mm (Customizable)
13	Relative Error of Torque Indication	< 0.5% / < 1%
14	Relative Error of Torsion Angle Indication	< 0.5%

Qualifications

Jinan Kane Testing Machine Manufacturing Co., Ltd. specializes in R&D and production of torsion testers, fatigue testers, spring testers and universal material testing machines. We offer standard and customized test solutions for automotive, aerospace, medical, fastener and composite industries. Our machines meet ISO, ASTM and GB standards, with reliable quality and full after-sales support for global customers.

Factory workshop

All complete machines are covered by a one-year quality guarantee. Any quality problems arising within the guarantee period will be addressed, and lifetime maintenance is provided.

Our service

Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.

Before sales

Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.

In sales

We will update information about your order position.

After sales

The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.

Quality assurance

All complete machines are covered by a one-year quality guarantee. Any quality problems arising within the guarantee period will be addressed, and lifetime maintenance is provided.

Machine Packing And Loading

Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
