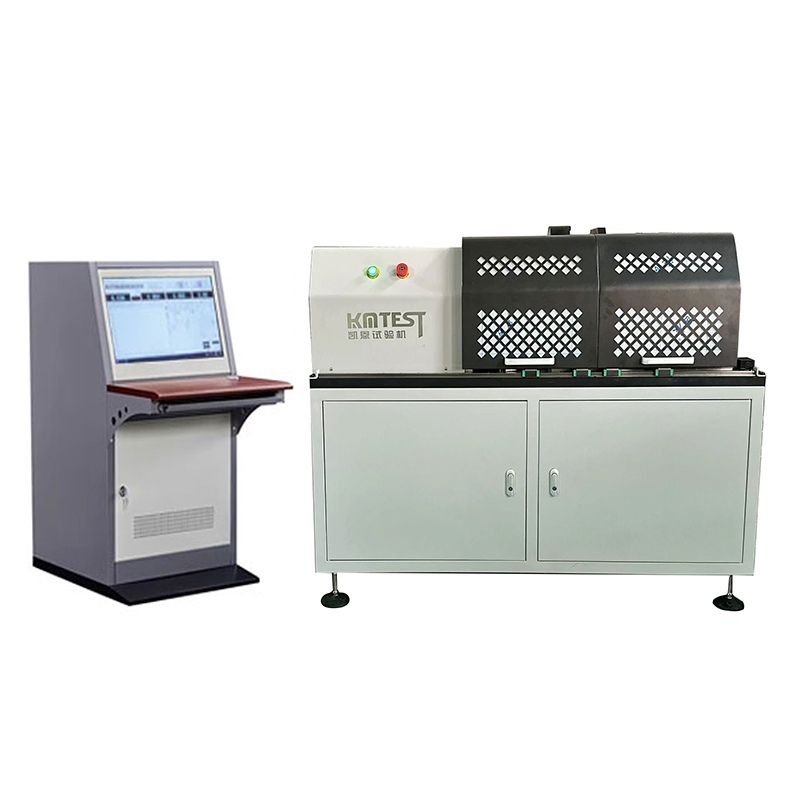

Clutch torsion tester

　　The manufacture and inspection of clutch torsion testing machine are based on JB/T9370-1999 Technical Conditions of Torsion Testing Machine, GB2611-2007 General Technical Requirements of Testing Machine and JG269-2006 Verification Regulation of Torsion Testing Machine. It is a special testing machine for testing the performance of mechanical clutch, electromagnetic clutch, hydraulic clutch and pneumatic clutch, such as agricultural machinery clutch and automobile clutch. It can test the performance of clutch, such as loading torque, sliding torque and damping torque, and produce torque curves, which can be used to study innovative clutches and improve I! You can also test the power and produce the power curve! After the test, the experimental report can be issued and printed!

No.	Parameter	Details
1	Style	Horizontal
2	Testing Machine Class	Class 1 / Class 0.5
3	Accurate Measurement Range	1% FS - 100% FS
4	Torque Indication Error	Better than ±1%; Torque repeatability error better than 1%
5	Angle Resolution	0.01°
6	Angle Measurement Accuracy	Better than ±1%
7	Torsion Attachment	Three-jaw chuck type, bidirectional jacking type
8	Test Stroke	300mm or 500mm (Extendable)
9	Torsion Speed Control Range	0.01 - 5 R/min (Stepless speed regulation)
10	Torsion Speed Control Accuracy	Better than ±1%
11	Appearance	Shall meet the requirements of GB/T2611
12	Completeness	Conforms to standard requirements
13	Protection Function	Overload protection function
14	Power Supply	220V, 50Hz

Qualifications

Jinan Kane Testing Machine Manufacturing Co., Ltd. specializes in R&D and production of torsion testers, fatigue testers, spring testers and universal material testing machines. We offer standard and customized test solutions for automotive, aerospace, medical, fastener and composite industries. Our machines meet ISO, ASTM and GB standards, with reliable quality and full after-sales support for global customers.

Factory workshop

All complete machines are covered by a one-year quality guarantee. Any quality problems arising within the guarantee period will be addressed, and lifetime maintenance is provided.

Our service

Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.

Before sales

Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.

In sales

We will update information about your order position.

After sales

The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.

Quality assurance

All complete machines are covered by a one-year quality guarantee. Any quality problems arising within the guarantee period will be addressed, and lifetime maintenance is provided.

Machine Packing And Loading

Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
