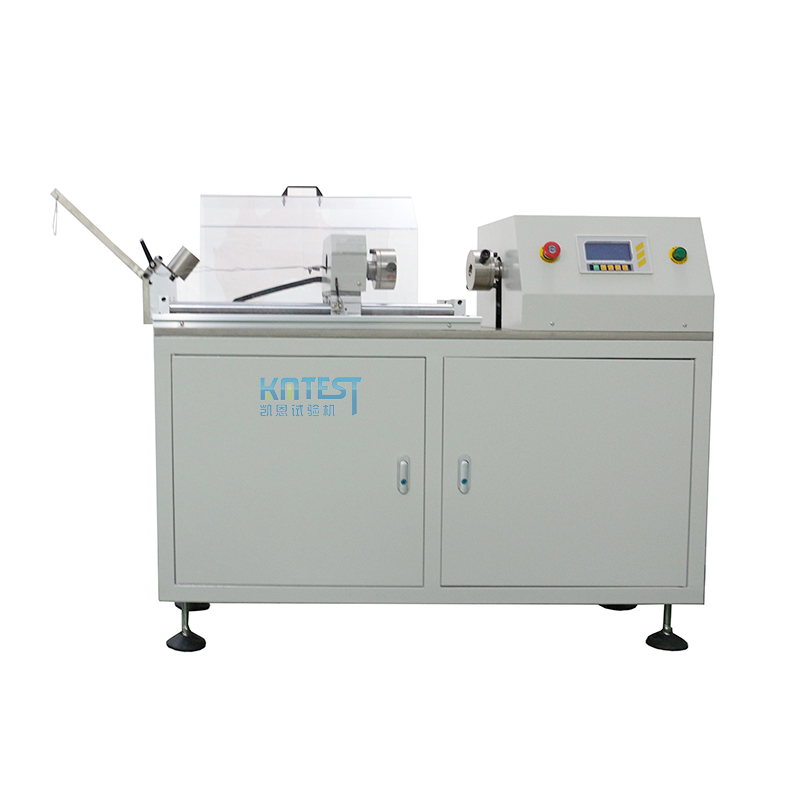

Wire Torsion Testing Machine

The metal wire torsion testing machine is suitable for determining the ability of metal wires with a diameter (or characteristic dimension) of 0.05–30 mm to withstand plastic deformation during unidirectional or bidirectional torsion, and for revealing surface and internal defects of the wire....

None

Wire Wrapping Testing Machine

　　Applicable Standards:

　　The metal wire torsion testing machine complies with the national standards of the People's Republic of China, GB/T 239.1-2012 "Metallic materials—Wire—Unidirectional torsion test method" and GB/T 239.2-2012 "Metallic materials—Wire—Bidirectional torsion test method". It also complies with the international standards ISO 7800:1984 "Metallic materials—Wire—Unidirectional torsion test" and ISO 9649:1990 "Metallic materials—Wire—Bidirectional torsion test".

Parameter	Specification
Wire Diameter Range	0.1–30 mm
Gauge Length Between Grips	220–530 mm (customizable)
Maximum Counter Capacity	999,999.9
Flat Jaw Clamping Range	Optional
Torsion Speed	0.5 r/s – 2 r/s
Speed Error	< ±5%
Minimum Resolution of Turns	0.1 turn
Jaw Hardness (HRC)	55–65
Guide Rail Parallelism	< 0.2 mm
Jaw Coaxiality	< 0.4 mm
Machine Dimensions (L×W×H)	Approx. 1060 mm × 430 mm × 600 mm
Machine Weight	Approx. 160 kg
Power Supply	220 V, 50 Hz
Machine Noise	< 60 dB (A)
Assembly Quality	Complies with national standard GB/T 2611
Packaging	Complies with machinery industry standard JB/T 614

Qualifications

Jinan Kane Testing Machine Manufacturing Co., Ltd. specializes in R&D and production of torsion testers, fatigue testers, spring testers and universal material testing machines. We offer standard and customized test solutions for automotive, aerospace, medical, fastener and composite industries. Our machines meet ISO, ASTM and GB standards, with reliable quality and full after-sales support for global customers.

Factory workshop

All complete machines are covered by a one-year quality guarantee. Any quality problems arising within the guarantee period will be addressed, and lifetime maintenance is provided.

Our service

Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.

Before sales

Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.

In sales

We will update information about your order position.

After sales

The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.

Quality assurance

All complete machines are covered by a one-year quality guarantee. Any quality problems arising within the guarantee period will be addressed, and lifetime maintenance is provided.

Machine Packing And Loading

Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
