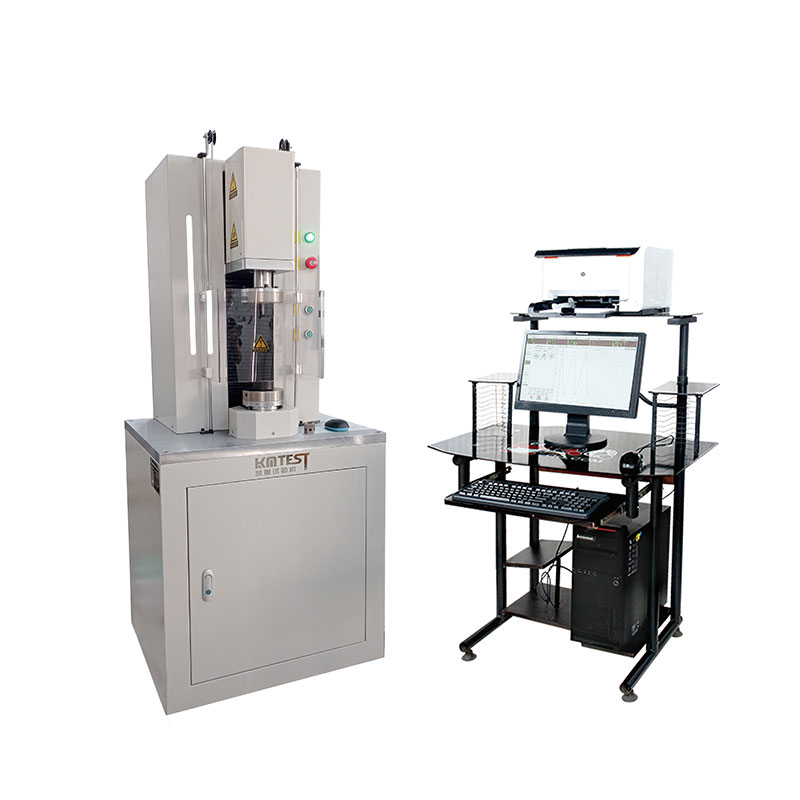

0–100 N·m Vertical Tool Torque Testing Machine

The vertical torque testing machine is designed for mechanical and fatigue testing of various tools, finished and semi-finished products, and workpieces, including bits, sockets, screwdrivers, wrenches, pipe wrenches, and metal raw materials....

None

2000 N·m Tool Torque Testing M

Application	The vertical torque testing machine is designed for mechanical and fatigue testing of various tools, finished and semi-finished products, and workpieces, including bits, sockets, screwdrivers, wrenches, pipe wrenches, and metal raw materials.
Control System	Equipped with a touch-screen computer control system, it can automatically perform complete cycle tests or individually measure specific parameters of tools. Test reports can be printed as needed.
Operation	The test program can be adjusted flexibly according to actual requirements, offering convenient operation.
Data Processing	The computer control system provides automated test process control and data processing, with diversified report formats including dynamic curves, Excel, and text files.

Touch-screen computer control: Indicates a user-friendly interface with programmable test sequences.
Dynamic curve graphs: Real-time torque-angle or torque-time curves displayed during testing.
Excel/text file output: Allows easy data export for further analysis or documentation.
Fatigue performance testing: Capability to perform cyclic loading tests to evaluate tool durability.

Parameter	Specification
Maximum Torque	1 N·m, 5 N·m, 10 N·m, 50 N·m, 100 N·m, 200 N·m (above are standard models; customizable)
Accuracy Class	Class 0.5 / Class 1
Torque Measurement Range	1%–100% of full scale
Torque Resolution	0.01–0.1 N·m
Torque Resolution (Digital)	1/±300,000
Torque Direction	Bidirectional (clockwise and counterclockwise)
Torsion Speed Control Range	0.1°–720°/min (customizable)
Angle Measurement Range	0°–±99,999°
Test Stroke	10–300 mm (customizable)
Repeatability Error (Indication)	< 0.5%
Torque Indication Relative Error	< ±0.5% / < ±1%
Torsion Angle Indication Relative Error	< ±0.5%
Loading Method	Fully automatic
Equipment Weight	Approx. 200 kg
Torsion Accessories	One set (universal)
Completeness	Complies with standard requirements
Appearance	Complies with GB/T 2611 requirements
Power Supply	220 V, 50 Hz
Applicable Tools	Various specifications of tools
