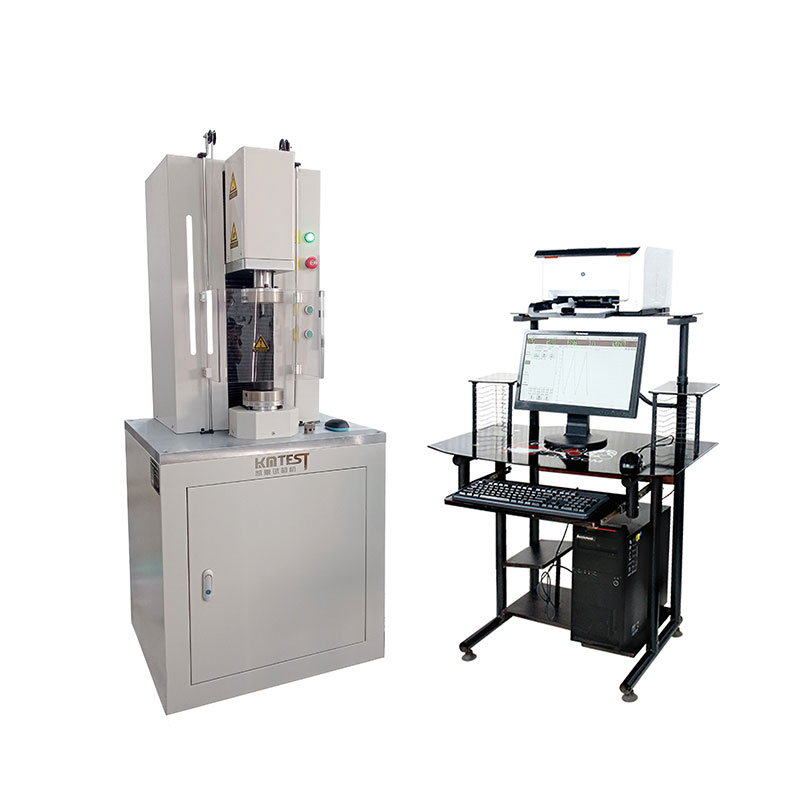

Socket Torque Tester

　The socket torsion testing machine is mainly used for the testing of sockets in the tool category. The socket under test is installed between adjustable fixtures, allowing it to adapt to different test specimens for torsional mechanical performance testing. The socket torsion testing machine adopts computer-controlled operation and can perform data acquisition of torque, peak value, angle, curves, etc. The display shows the torque-time, torque-torsion angle, and torque-rotation angle test curves of the socket under test. It supports test data storage, retrieval, printing of test reports, and more....

5000 N·m Tool Torque Testing M

Screwdriver Torque Testing Mac

Parameter	Specification
Maximum Torque	10 N·m, 50 N·m, 100 N·m, 200 N·m, 500 N·m, 1000 N·m, 2000 N·m, 5000 N·m (above are standard models; customizable)
Accuracy Class	Class 0.5 / Class 1
Torque Measurement Range	1% – 100% of full scale
Torque Resolution	0.01 – 0.1 N·m
Torque Direction	Bidirectional (clockwise and counterclockwise)
Torsion Speed Control Range	0.1° – 720°/min (customizable)
Torque Resolution (Digital)	1 / ±300,000
Angle Measurement Range	0° – ±99,999°
Test Stroke	300 – 600 mm (customizable)
Repeatability Error (Indication)	< 0.5%
Torque Indication Relative Error	< ±0.5% / < ±1%
Loading Method	Fully automatic
Torsion Angle Indication Relative Error	< ±0.5%
Equipment Weight	Approx. 200 kg
Torsion Accessories	One set (universal)
Completeness	Complies with standard requirements
Appearance	Complies with GB/T 2611 requirements
Power Supply	220 V, 50 Hz
Applicable Tools	Various specifications of tools

Qualifications

Jinan Kane Testing Machine Manufacturing Co., Ltd. specializes in R&D and production of torsion testers, fatigue testers, spring testers and universal material testing machines. We offer standard and customized test solutions for automotive, aerospace, medical, fastener and composite industries. Our machines meet ISO, ASTM and GB standards, with reliable quality and full after-sales support for global customers.

Factory workshop

All complete machines are covered by a one-year quality guarantee. Any quality problems arising within the guarantee period will be addressed, and lifetime maintenance is provided.

Our service

Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.

Before sales

Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.

In sales

We will update information about your order position.

After sales

The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.

Quality assurance

All complete machines are covered by a one-year quality guarantee. Any quality problems arising within the guarantee period will be addressed, and lifetime maintenance is provided.

Machine Packing And Loading

Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
