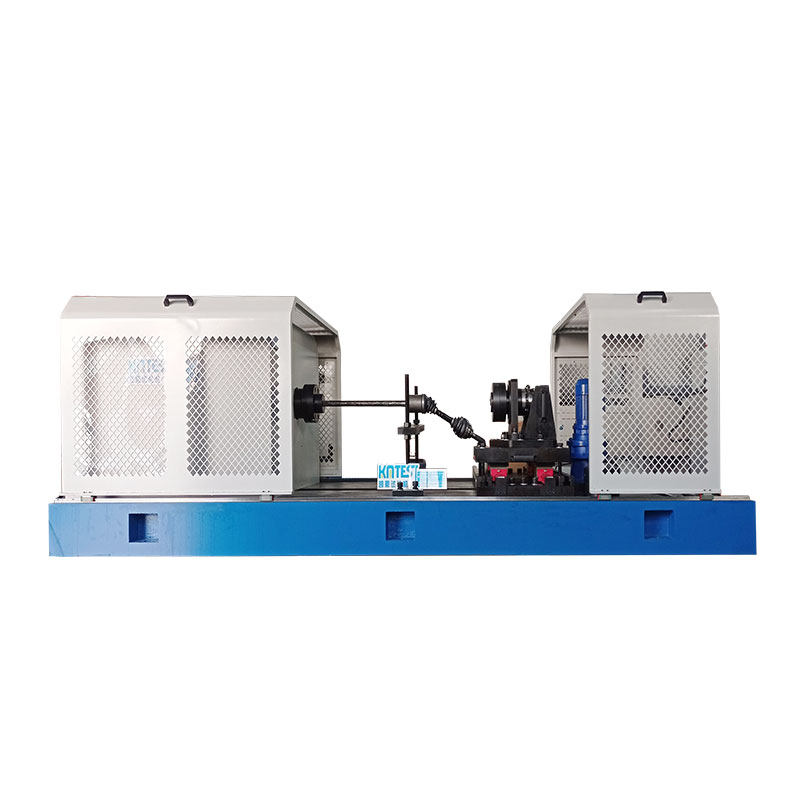

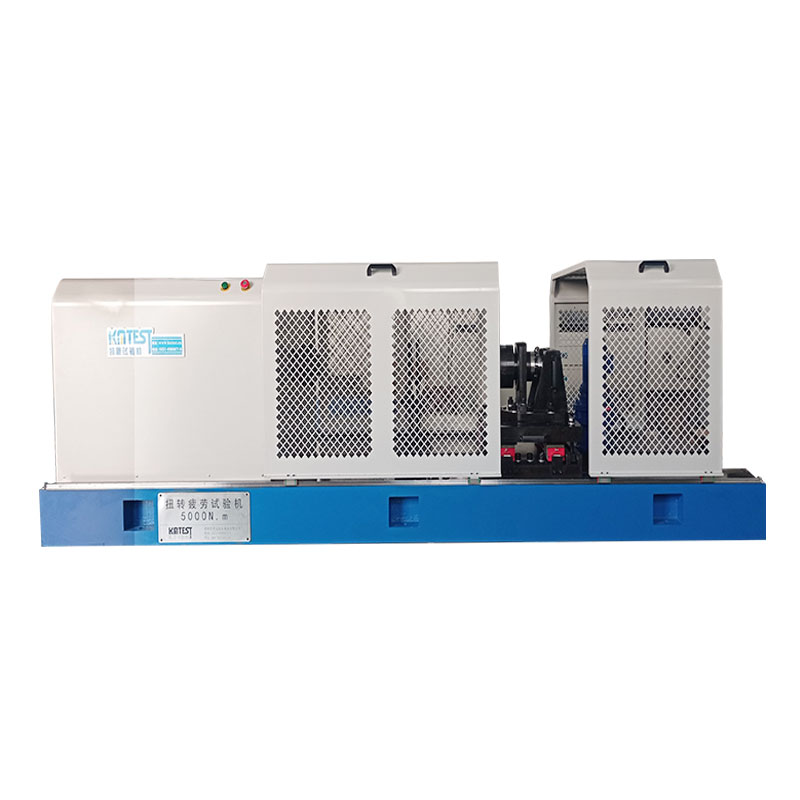

Drive Shaft Torsion Testing Machine

Drive Shaft Torsion Testing Machine is a precision testing device specifically designed to evaluate the mechanical properties and torsional fatigue life of automotive drive shafts, half shafts, universal drive shafts...

Pulley torsion tester

Coupling Torque Tester

　　The Drive Shaft Torsion Testing Machine is a precision testing device specifically designed to evaluate the mechanical properties and torsional fatigue life of automotive drive shafts, half shafts, universal drive shafts, and other transmission components under torsional loading. This equipment is primarily used to assess the torsional strength, torsional stiffness, yield torque, maximum torque, and fatigue life of drive shafts under static and dynamic torque, ensuring the reliability and safety of drive shafts in actual use.

Standard No.	Standard Name	Key Content
QC/T 523	Bench test method for automotive drive shaft assembly	Torsional fatigue test method for drive shaft assembly
QC/T 29082	Technical specification for automotive drive shaft assembly	Technical requirements and test requirements for drive shaft assembly
GB/T 12443	Metallic materials — Torque-controlled fatigue testing method	Torsional fatigue test method for metallic materials
ISO 1352	Metallic materials — Torsional stress fatigue testing	Torsional stress fatigue testing of metallic materials
SAE J328	Driveshafts - Test Procedures	Drive shaft test procedures (SAE standard)
ASTM E2207	Standard Practice for Strain-Controlled Axial-Torsional Fatigue Testing	Strain-controlled axial-torsional fatigue testing

Parameter	Typical Range	Description
Maximum Torque	±500 N·m ~ ±50000 N·m	Passenger car half shaft approx. 2000N·m, truck drive shaft up to 20000N·m
Torque Accuracy	Class 0.5 / Class 1	Indicated value accuracy grade
Torque Resolution	0.1 N·m ~ 1 N·m	Depends on sensor range
Torsion Angle Measurement Range	0° ~ ±99999° (unlimited continuous)	Multi-turn measurement, up to hundreds of turns
Torsion Angle Resolution	0.01° / 0.001°	High-precision measurement
Test Frequency (Fatigue)	0.01 Hz ~ 20 Hz	Dynamic fatigue testing frequency
Test Waveforms	Sine, triangle, square, sawtooth	For fatigue testing
Control Mode	Torque control / Angle control	Closed-loop control
Power Supply	380V, 50Hz	Industrial power supply
Equipment Weight	Approx. 1000 ~ 5000 kg	Depending on model configuration

Application Area	Description
Automotive Manufacturing	Testing of passenger car, truck, bus, off-road vehicle drive shafts and half shafts
Component Suppliers	Outgoing inspection and type testing for drive shaft manufacturers
New Energy Vehicles	Testing of electric drive axle half shafts and drive shafts
Construction Machinery	Drive shaft testing for loaders, excavators, etc.
Rail Transportation	Drive shaft testing for high-speed rail, subway vehicles
Military Industry	Drive shaft testing for military vehicles, special vehicles
Testing Institutions	Third-party testing, quality supervision and inspection
