High-Low Temperature Universal Tension and Compression Testing Machine

High-Low Temperature Electronic Universal Testing Machine for Materials　　This testing machine is designed for evaluating the mechanical properties of various metallic and non-metallic materials and components, including tensile strength, compressive strength, flexural strength, and shear strength. It features a maximum load capacity of 500kN, with multiple range options, and utilizes non-contact measurement technology suitable for analyzing a wide variety of materials....

None

80KN/100KN/200KN/300KN/500KN M

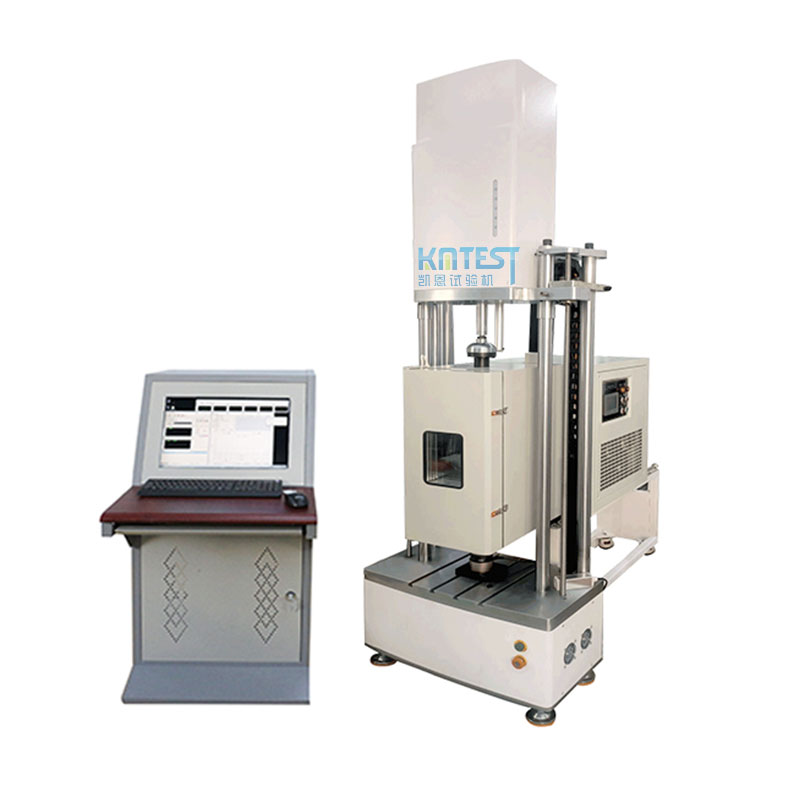

　　High-Low Temperature Electronic Universal Testing Machine for Materials

　　This testing machine is designed for evaluating the mechanical properties of various metallic and non-metallic materials and components, including tensile strength, compressive strength, flexural strength, and shear strength. It features a maximum load capacity of 500kN, with multiple range options, and utilizes non-contact measurement technology suitable for analyzing a wide variety of materials.

　　Key Features:

　　High-Low Temperature Chamber: Equipped with a specialized chamber for mechanical property testing under high and low-temperature conditions, ideal for scenarios where traditional extensometers are unsuitable or when deformation is minimal.

　　Non-Contact Video Extensometer: Enables longitudinal and transverse strain measurement with customizable gauge lengths (ranging from a few millimeters to several hundred millimeters). It is particularly useful for precise measurements of flexible specimens that are difficult to clamp. It also supports the calculation of key parameters such as Poisson's ratio and elastic modulus.

　　Full-Process Tracking and Evaluation: The testing process includes real-time monitoring and data tracking, ensuring high accuracy, ease of operation, and broad applicability to meet diverse testing requirements.

　　Customizable Solutions: Offers flexible, non-standard customization based on specific user needs.

No.	Parameter	Details
1	Test Force	1N - 500kN (Standard models as above, customizable)
2	Testing Machine Class	Class 0.5 / Class 1
3	Load Measurement Range	0.4% - 100% FS of full scale
4	Test Force Indication Resolution	1/500,000 of maximum test force
5	Permissible Error of Test Force Indication	Within ±1% of limit value
6	Relative Error of Indication Repeatability	＜0.5%
7	Deformation Measurement Range	1% - 100% FS
8	Deformation Indication Error	Within ±1% of limit value
9	Deformation Resolution	1/500,000 of maximum deformation
10	Displacement Resolution	0.001 mm
11	Limit Error of Displacement Indication	Within ±1% of indicated value
12	Displacement Speed Adjustment Range	0.01 - 500 mm/min
13	Constant Displacement Control Adjustment Accuracy	Rate <0.1% FS: within ±1% of set value; Rate >0.1% FS: within ±0.2% / ±0.5% of set value
15	Deformation Measurement Range	1% - 100% FS
16	Displacement Speed Control Accuracy	Speed <1 mm/min: within ±0.5% of set value; Speed ≥1 mm/min: within ±0.2% of set value
18	Deformation Resolution	1/500,000 of maximum deformation
19	Displacement Resolution	0.001 mm
20	Effective Test Width	500 - 1000 mm
21	Temperature Range	-70°C to 1000°C

Qualifications

Jinan Kane Testing Machine Manufacturing Co., Ltd. specializes in R&D and production of torsion testers, fatigue testers, spring testers and universal material testing machines. We offer standard and customized test solutions for automotive, aerospace, medical, fastener and composite industries. Our machines meet ISO, ASTM and GB standards, with reliable quality and full after-sales support for global customers.

Factory workshop

All complete machines are covered by a one-year quality guarantee. Any quality problems arising within the guarantee period will be addressed, and lifetime maintenance is provided.

Our service

Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.

Before sales

Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.

In sales

We will update information about your order position.

After sales

The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.

Quality assurance

All complete machines are covered by a one-year quality guarantee. Any quality problems arising within the guarantee period will be addressed, and lifetime maintenance is provided.

Machine Packing And Loading

Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
