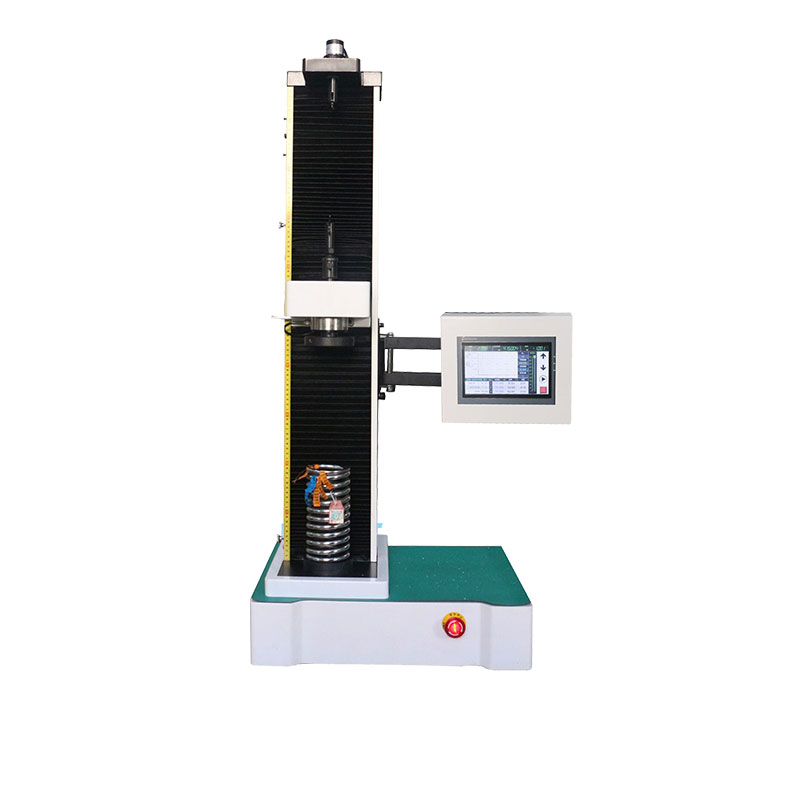

Disc spring pressure testing machine disc spring fatigue testing machine

The disc spring testing machine is specially designed for the static pressure strength test, compression fatigue test, on-line inspection, batch inspection test, etc. of disc springs, oval springs, gaskets, shrapnel, combined springs (tile springs)....

0-5000N small spring tension a

Gas Spring Testing Machine

　　1. Determine whether the spring is qualified by measuring the corresponding force value f through the deformation of the spring △H or pressing to the height h.

　　2. According to the force value f of the spring, measure the corresponding spring deformation △H or height h to judge whether the spring is qualified.

　　3. One or more tests can be conducted to determine whether the spring is qualified.4. The products can be sampled and inspected, and batch testing can also be carried out (the mechanical part has batch testing tools).

No.	Parameter	Details
1	Maximum Test Force	10N, 50N, 100N, 200N, 500N, 1000N, 5000N, 10kN, 20kN, 50kN, 100kN, 200kN, 300kN, 600kN, 800kN, 1000kN (Customizable)
2	Accurate Measurement Range	1% - 100% FS
3	Force Accuracy	Better than ±1% / Better than ±0.5%
4	Pressure Sensor Accuracy	0.05% F.S
5	Compression Space	0 - 600 mm (Customized according to requirements)
6	Column Spacing	600 mm (Customized according to requirements)
7	Upper and Lower Pressure Plates	φ300 mm round (Customized according to requirements)
8	Test Stroke	0 - 600 mm (Customized according to requirements)
9	Testing Machine Class	Class 1 / Class 0.5
10	Test Frequency	0 - 50 Hz (For fatigue testing)
