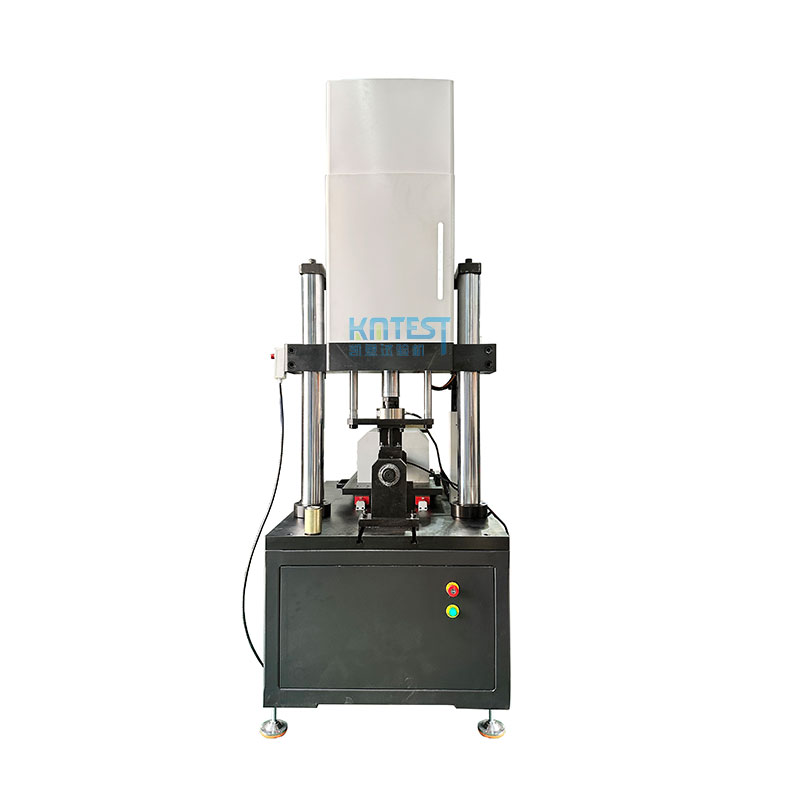

Rubber bushing tension-torsion dual-channel fatigue tester radial force torsion fatigue tester

　　The tensile and torsional fatigue testing machine for rubber bushing is a special equipment for fatigue durability test of rubber bushing. The test-bed is mainly composed of swing loading system, radial servo loading system, torque measurement master system, angle measurement master system, load and displacement measurement and control system and so on. Computer software is written in C++, which is agile and extensible.Product use:This product is mainly used for rubber bushing. The bushing is used as a gasket ring in the field of valve application. The bushing is inside the valve cover, and corrosion-resistant materials such as PTFE or graphite are generally used for sealing. Wrap the valve stem, which is worn and can be easily replaced. It has agility and expansibility, and is widely used in torsion testing of metal and nonmetal products such as welding points, spring steel, pipes, bars and axles, and can obtain performance parameters such as torque, torsional strength, upper yield strength and lower yield strength. And you can print specific data reports.According to the standard:1.GB/T 10128-1998 "Metal Room Temperature Torsion Test Method"2.GB/T 10128-2023 "Metal Room Temperature Torsion Test Method"

　　Product features:

　　1. Chinese test software suitable for WINDOWS platform to realize test data acquisition and processing.

　　2. The test data can be collected, processed, displayed and printed in real time.

　　3. Curve traversal: You can access the curve data point by point with the mouse, so as to obtain various data. The relationship curve between torque and torsion angle can reflect the relationship between torque and angle at any point, and the required data points can be conveniently found on the curve. It is convenient to enlarge and restore the curve locally.

　　4. The torque and angle measuring channels can be reset manually or automatically at any time as required.

　　5. Automatic saving: test conditions and test data are automatically saved, and can be recalled at any time when necessary.

　　6. Batch test: After the test conditions are set, a batch of samples can be tested in turn, and the test conditions, sample parameters, test data and results can be stored and called at any time, and it is not necessary to set the test again.

　　7.print the test report
